pfsCoZCandidates

Overview

pfsCoZCandidates is the LAM 1D output file. It bundles redshift candidates, classification results, line measurements, and quality flags for all objects in a single catalog (catId), following the same pfsCoadd structure.

The LAM 1D pipeline is run on each pfsCoadd file, i.e. one pfsCoZCandidates file is produced per combination/catId/objGroup combination (see the pfsCoadd section). The files are stored inside the Butler repository and follow the same combination structure as pfsCoadd.

Filename format: pfsCoZCandidates_PFS_{combination}_{catId}_{objGroup}_{collection}_{lam1d_collection}.fits

Example from proposal S25A-000QF, catId 10094 (brn_run26 combination, 22 object groups):

/shared/pfs/programs/S25A-000QF/2d/run26_June2026/lam1d_modified/pfsCoZCandidates/10094/
    pfsCoZCandidates_PFS_brn_run26_10094_1_run26_June2026_lam1d_modified.fits
    pfsCoZCandidates_PFS_brn_run26_10094_2_run26_June2026_lam1d_modified.fits
    ...
    pfsCoZCandidates_PFS_brn_run26_10094_22_run26_June2026_lam1d_modified.fits

• Flux units for line measurements are nJy (continuum) and 10⁻³⁵ W/m² (line flux).
• For each object a GALAXY, QSO, and STAR template is fit, with the best indicated by the class column in the CLASSIFICATION HDU.
• Each object can have multiple redshift candidates; the best is indicated by cRank=0 in the object CANDIDATES HDUs.

FITS structure:

HDU	Name	Type	Description
#0	PDU	Header	Version keywords (D1D_VER, D1DP_VER, etc.)
#1	TARGET	Binary table	Object identifiers (targetId, catId, objId, ra, dec, targetType)
#2	WARNINGS	Binary table	Per-solver warning bitmasks
#3	ERRORS	Binary table	Per-solver error codes and messages
#4	CLASSIFICATION	Binary table	Best classification (GALAXY/QSO/STAR) with probabilities
#5	GALAXY_CANDIDATES	Binary table	Galaxy redshift candidates (ranked)
#6	GALAXY_MODELS	Image/table	Best-fit galaxy model spectra (nJy)
#7	GALAXY_REDSHIFT_GRID	Binary table	Redshift grid used for galaxy PDF
#8	GALAXY_LN_PDF	Image	ln(probability) marginalised over galaxy templates
#9	GALAXY_LINES	Binary table	Galaxy emission/absorption line measurements
#10	QSO_CANDIDATES	Binary table	QSO redshift candidates (ranked)
#11	QSO_MODELS	Image/table	Best-fit QSO model spectra (nJy)
#12	QSO_REDSHIFT_GRID	Binary table	Redshift grid used for QSO PDF
#13	QSO_LN_PDF	Image	ln(probability) marginalised over QSO templates
#14	QSO_LINES	Binary table	QSO emission/absorption line measurements
#15	STAR_CANDIDATES	Binary table	Stellar radial velocity candidates (ranked)
#16	STAR_MODELS	Image/table	Best-fit stellar model spectra (nJy)
#17	STAR_VELOCITY_GRID	Binary table	Velocity grid used for stellar PDF
#18	STAR_LN_PDF	Image	ln(probability) marginalised over stellar templates
#19	QUALITY	Binary table	Quality metrics (OII doublet SNR, valid pixel count, etc.)

Key Columns

CLASSIFICATION (HDU #4):

Column	Type	Description
targetId	16-bit INT	Links to TARGET HDU
class	STRING	Best classification: GALAXY, QSO, or STAR
probaGalaxy	FLOAT	Probability of being a galaxy
probaQSO	FLOAT	Probability of being a QSO
probaStar	FLOAT	Probability of being a star

GALAXY_CANDIDATES (HDU #5) — key columns:

Column	Type	Description
cRank	32-bit INT	Candidate rank; 0 = best
redshift	32-bit FLOAT	Best-fit redshift
redshiftError	32-bit FLOAT	Redshift uncertainty
redshiftProba	32-bit FLOAT	PDF peak area (dz = ±3×10⁻³)
subClass	STRING	Sub-classification
continuumFile	STRING	Continuum template used

The same ranked-candidate structure applies to QSO_CANDIDATES (HDU #10) and STAR_CANDIDATES (HDU #15), with velocity replacing redshift for stars.

Build LAM 1D Object Table & Plot Magnitude vs Redshift/Velocity

The following code builds a combined object table across all LAM 1D results in a collection with the best object classification and redshift/velocity values as indicated by the pipeline. It works in three steps:

1. Magnitude lookup — iterates over all visits in the collection via pfsMerged, extracting per-object magnitudes from pfsConfig across all available filters.
2. LAM 1D FITS reading — reads all pfsCoZCandidates FITS files for a given collection, extracting the best object classification, best redshift/velocity candidate (by highest probability), warnings, and errors for each object.
3. Combining and saving — merges the magnitude lookup with the LAM 1D results into a single CSV file ({collections}_all_lam1d.csv), which can be used to browse objects by class, redshift, velocity, or objId

After saving the CSV, the code plots magnitude vs. redshift (for GALAXY and QSO) and magnitude vs. velocity (for STAR), coloured by catId.

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from lsst.daf.butler import Butler
from pfs.datamodel import TargetType

# ==== USER-DEFINED PARAMETERS ====
repo              = "/shared/pfs/programs/S25A-000QF/2d/"
collections       = "run26_June2026"
collections_lam1d = "run26_June2026/lam1d_modified"  # LAM1D collection name

# ==== FIND OBJECT MAGNITUDES ====
butler     = Butler(repo, collections=[collections, collections_lam1d])
all_visits = sorted({ref.dataId['visit'] for ref in butler.registry.queryDatasets('pfsMerged')})
print(f"Building magnitude lookup from {len(all_visits)} visits...")

mag_lookup = {}
for i, visit in enumerate(all_visits):
    print(f"  Visit {i+1}/{len(all_visits)}: {visit}  ({len(mag_lookup)} unique objects so far)", end='\r', flush=True)
    pfsConfig = butler.get('pfsConfig', dict(visit=visit))
    sci       = pfsConfig.select(targetType=TargetType.SCIENCE, fiberStatus=1)
    if len(sci.objId) == 0:
        continue
    total_flux = np.array([list(f) for f in sci.totalFlux], dtype=float)
    psf_flux   = np.array([list(f) for f in sci.psfFlux],   dtype=float)
    flux       = np.where((total_flux > 0) & np.isfinite(total_flux), total_flux, psf_flux)
    with np.errstate(divide='ignore', invalid='ignore'):
        mags = np.where(flux > 0, -2.5 * np.log10(flux) + 31.4, np.nan)
    for j, oid in enumerate(sci.objId):
        oid_int = int(oid)
        if oid_int not in mag_lookup:
            obj_filters = list(sci.filterNames[j])
            seen, obj_cols = {}, []
            for fn in obj_filters:
                count = seen.get(fn, 0)
                obj_cols.append(f'mag_{fn}_{count}' if count > 0 or obj_filters.count(fn) > 1 else f'mag_{fn}')
                seen[fn] = count + 1
            mag_lookup[oid_int] = {col: mags[j, k] for k, col in enumerate(obj_cols)}

print()  # clear the \r line

mag_df       = pd.DataFrame([{'objId': oid, **m} for oid, m in mag_lookup.items()])
mag_cols_all = [col for col in mag_df.columns if col.startswith('mag_')]
empty_cols   = [col for col in mag_cols_all if mag_df[col].isna().all()]
mag_df       = mag_df.drop(columns=empty_cols)
mag_cols     = [col for col in mag_cols_all if col not in empty_cols]
print(f"Magnitude lookup complete: {len(mag_df)} unique objects  |  Filters: {mag_cols}")

# ==== READ LAM1D VIA BUTLER ====
refs = list(butler.registry.queryDatasets('pfsCoZCandidates'))
print(f"Reading LAM1D from {len(refs)} pfsCoZCandidates files via Butler...")

all_final_dfs = []
n_skipped     = 0

for i, ref in enumerate(refs):
    cat_id    = ref.dataId['cat_id']
    obj_group = ref.dataId['obj_group']
    print(f"  Processing file {i+1}/{len(refs)}  ({n_skipped} skipped)", end='\r', flush=True)
    try:
        coZCands = butler.get('pfsCoZCandidates', ref.dataId)
    except Exception as e:
        print(f"\n  Failed cat_id={cat_id} obj_group={obj_group}: {e}")
        n_skipped += 1
        continue

    records = []
    for target in coZCands:
        zc  = coZCands[target]
        nan = float('nan')
        rec = {
            'objId':       int(target.objId),
            'catid':       cat_id,
            'obj_group':   obj_group,
            'combination': ref.dataId['combination'],
            'class':       zc.classification.name,
            'probaGalaxy': next((float(v) for k, v in zc.classification.probabilities.items() if k.upper() == 'GALAXY'), nan),
            'probaQSO':    next((float(v) for k, v in zc.classification.probabilities.items() if k.upper() == 'QSO'),    nan),
            'probaStar':   next((float(v) for k, v in zc.classification.probabilities.items() if k.upper() == 'STAR'),   nan),
        }
        try:
            gp = zc.galaxy.parameters[0]
            rec['redshift_gal']      = gp.get('redshift',      nan)
            rec['redshiftProba_gal'] = gp.get('redshiftProba', nan)
        except (IndexError, AttributeError, TypeError):
            rec['redshift_gal'] = rec['redshiftProba_gal'] = nan
        try:
            qp = zc.qso.parameters[0]
            rec['redshift_qso']      = qp.get('redshift',      nan)
            rec['redshiftProba_qso'] = qp.get('redshiftProba', nan)
        except (IndexError, AttributeError, TypeError):
            rec['redshift_qso'] = rec['redshiftProba_qso'] = nan
        try:
            sp = zc.star.parameters[0]
            rec['velocity_star']      = sp.get('velocity',      nan)
            rec['templateProba_star'] = sp.get('templateProba', nan)
        except (IndexError, AttributeError, TypeError):
            rec['velocity_star'] = rec['templateProba_star'] = nan
        records.append(rec)

    if records:
        all_final_dfs.append(pd.DataFrame(records))

if not all_final_dfs:
    raise ValueError("No data found — check collections and lam1d collection name.")

print()  # clear the \r line
print(f"Processed {len(all_final_dfs)} files  ({n_skipped} skipped)")

# ==== COMBINE AND ATTACH MAGNITUDES ====
combined_df = pd.concat(all_final_dfs, ignore_index=True)
combined_df = combined_df.merge(mag_df[['objId'] + mag_cols], on='objId', how='left')
matched     = combined_df[mag_cols].notna().any(axis=1).sum()
print(f"Magnitudes matched: {matched} / {len(combined_df)} objects")

# ==== AUTO-CORRECT VELOCITY UNITS IF NEEDED ====
# The datamodel specifies km/s, but older releases used m/s. If the median absolute
# stellar velocity is >> 500 km/s, it is almost certainly stored in m/s and is corrected.
star_mask = combined_df['class'].str.upper() == 'STAR'
if star_mask.any():
    median_vel = combined_df.loc[star_mask, 'velocity_star'].abs().median()
    if median_vel > 5000:
        print(f"Auto-correcting velocity units: median |velocity|={median_vel:.0f} → likely m/s, dividing by 1000")
        combined_df.loc[star_mask, 'velocity_star'] = combined_df.loc[star_mask, 'velocity_star'] / 1000

# ==== SAVE ====
combined_df.to_csv(f'{collections}_all_lam1d.csv', index=False)
print(f"Saved {collections}_all_lam1d.csv  ({len(combined_df)} objects)")

# ==== CLASS BREAKDOWN ====
print("\nClass breakdown:")
for cls in sorted(combined_df['class'].str.upper().unique()):
    n = (combined_df['class'].str.upper() == cls).sum()
    print(f"  {cls}: {n} objects")

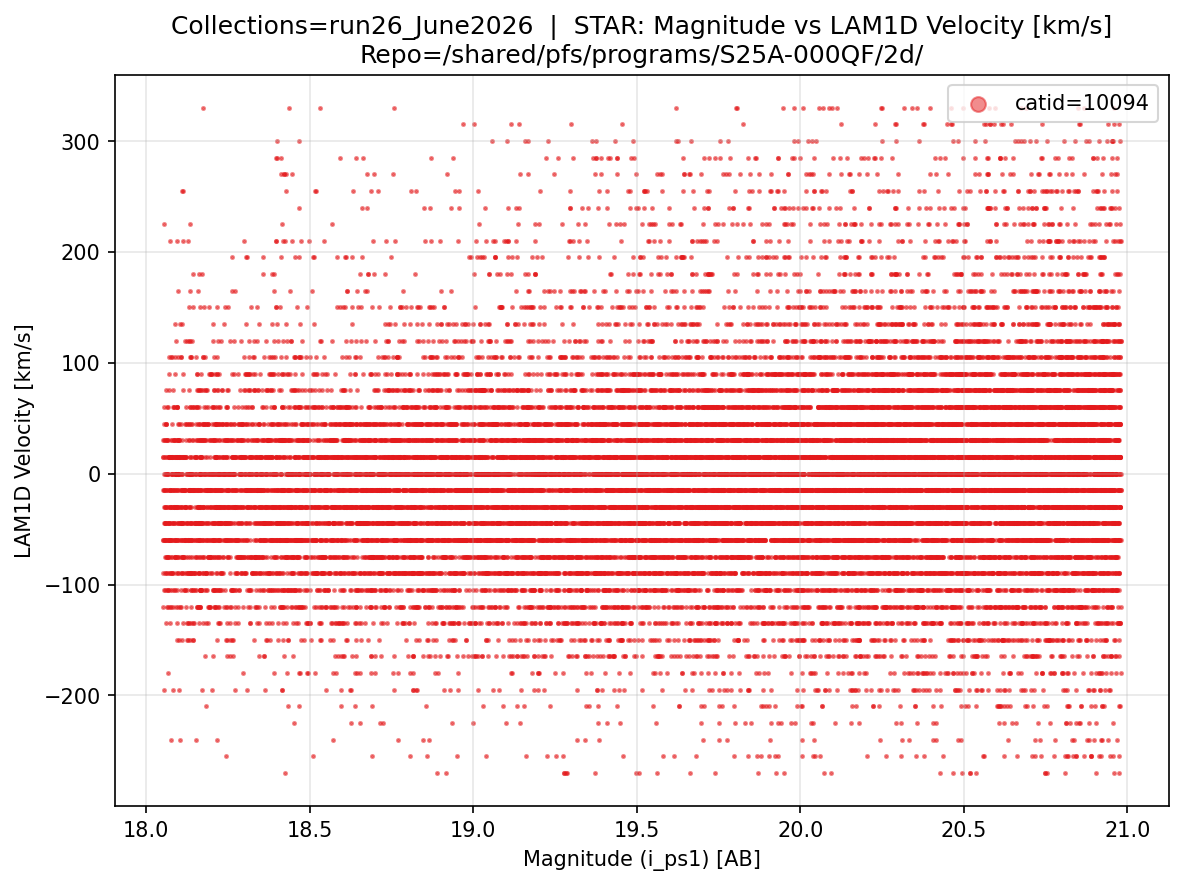

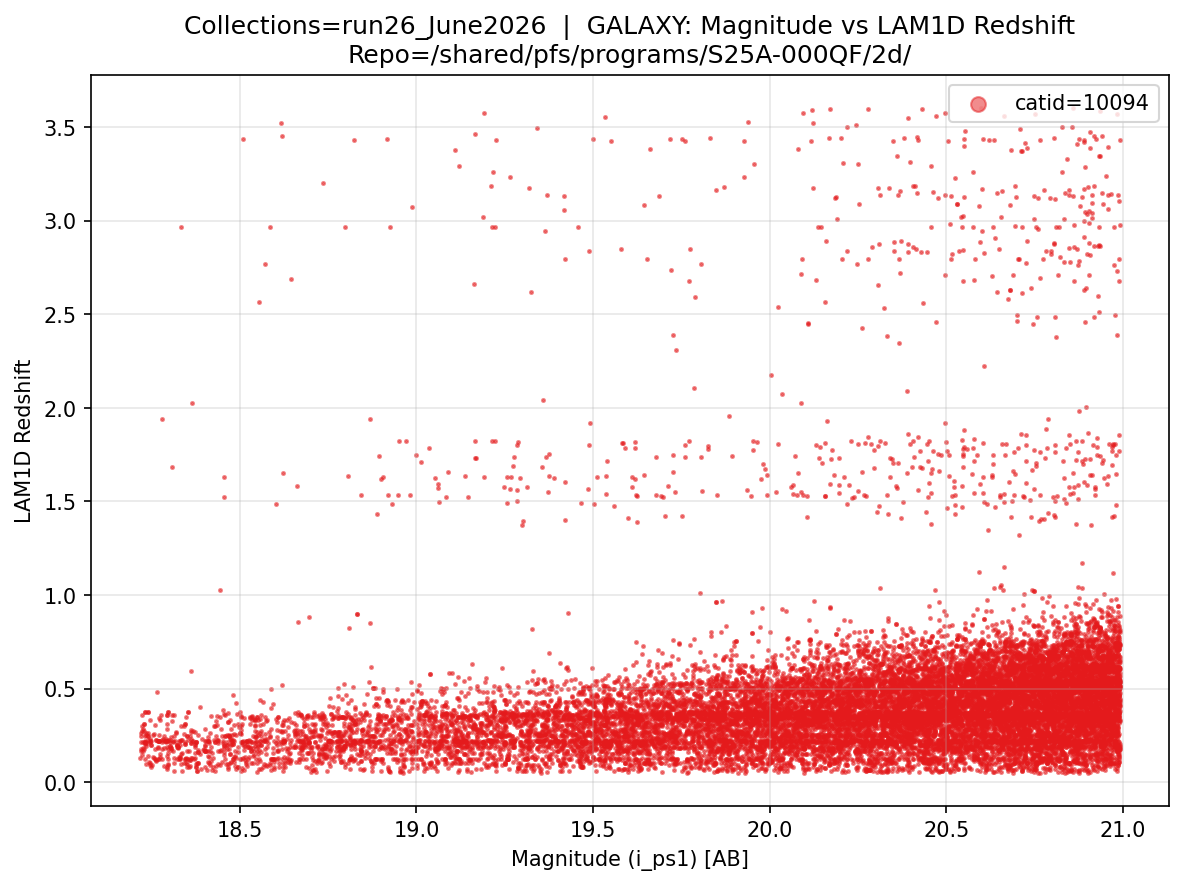

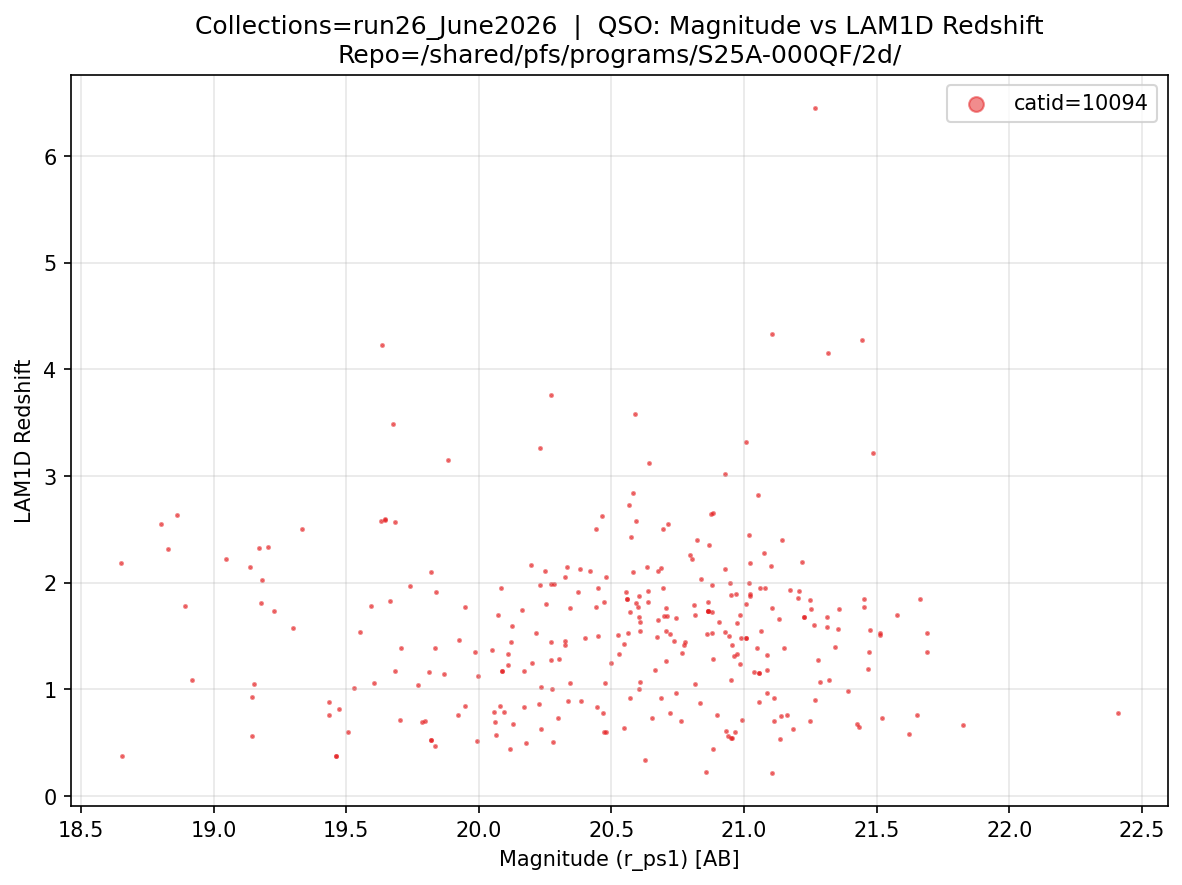

# ==== PLOTS: MAG VS REDSHIFT / VELOCITY PER CLASS ====
plot_config = [
    ("GALAXY", "redshift_gal",  "LAM1D Redshift",        1),
    ("QSO",    "redshift_qso",  "LAM1D Redshift",        1),
    ("STAR",   "velocity_star", "LAM1D Velocity [km/s]", 1),
]

unique_catids = sorted(combined_df['catid'].unique())
colors        = plt.cm.Set1(np.linspace(0, 1, max(len(unique_catids), 3)))
catid_colors  = dict(zip(unique_catids, colors))

for class_name, y_col, y_label, y_scale in plot_config:
    df_cls = combined_df[combined_df['class'].str.upper() == class_name].copy()
    if df_cls.empty:
        print(f"No {class_name} objects, skipping plot.")
        continue

    best_mag_col = df_cls[mag_cols].notna().sum().idxmax()
    filter_label = best_mag_col.replace('mag_', '')

    mag_vals = df_cls[best_mag_col]
    y_vals   = df_cls[y_col] * y_scale
    mag_lo, mag_hi = np.nanpercentile(mag_vals.dropna(), [1, 99])
    y_lo,   y_hi   = np.nanpercentile(y_vals.dropna(),   [1, 99])
    plot_mask = (
        mag_vals.between(mag_lo, mag_hi) &
        y_vals.between(y_lo, y_hi)
    )
    df_plot = df_cls[plot_mask]

    plt.figure(figsize=(8, 6))
    for cid in unique_catids:
        df_cid = df_plot[df_plot['catid'] == cid]
        if df_cid.empty:
            continue
        plt.scatter(df_cid[best_mag_col], df_cid[y_col] * y_scale, s=2, alpha=0.5,
                    color=catid_colors[cid], label=f'catid={cid}')

    plt.xlabel(f'Magnitude ({filter_label}) [AB]')
    plt.ylabel(y_label)
    plt.title(f'Collections={collections}  |  {class_name}: Magnitude vs {y_label}\nRepo={repo}')
    plt.legend(loc='upper right', markerscale=5)
    plt.grid(True, alpha=0.3)
    plt.tight_layout()
    plt.savefig(f'{collections}_{class_name}_mag_vs_{y_col}.png', dpi=150, bbox_inches='tight')
    plt.show()

Output:

Building magnitude lookup from 426 visits...
  Visit 426/426: 139726  (42558 unique objects so far)
Magnitude lookup complete: 42558 unique objects  |  Filters: ['mag_g_ps1', 'mag_r_ps1', 'mag_i_ps1', 'mag_z_ps1', 'mag_y_ps1']

Reading LAM1D from 32 pfsCoZCandidates files via Butler...
  Processing file 32/32  (0 skipped)
Processed 32 files  (0 skipped)

Magnitudes matched: 44333 / 44333 objects
Saved run26_June2026_all_lam1d.csv  (44333 objects)

Class breakdown:
  GALAXY: 20044 objects
  QSO: 309 objects
  STAR: 23980 objects
